3D CNC Ntoo Router
Yam ntxwv:
1. Lub 3D CNC woodworking milling tshuab txais cov dej txias ntxaiv, uas muaj kev ua haujlwm siab, lub neej ntev, kev ua haujlwm ruaj khov thiab yooj yim pib.
2. Thick-walled square tube qauv, zoo weldability, siab precision, ntev lub neej thiab tsis deformation.
3. 3D CNC Wood Router, type3, artcam, castmate, Weitai CAD/CAM tsim software, thiab lwm yam. Siv software.
4. Tsis siv neeg roj filling system, ib lub khawm ua haujlwm, yooj yim rau kev khiav lag luam.
5. 3D CNC Wood Router txais high-speed stepper lub cev muaj zog thiab tsav tsheb, ob lub Y-axis motors, thiab qhov siab tshaj plaws ceev tuaj yeem ncav cuag 25mm / min.
Main Parts:
|
|
Ballscrew | Helical khib |
|
|
Spindle | Inverter |
|
|

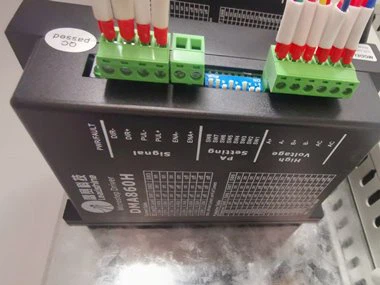

Stepper lub cev muaj zog | Leadshine tsav tsheb |
|
|
Aluminium T qhov rooj | Tsis siv neeg cov cuab yeej sensor |
|
|
DSP tswj qhov system | Cov cuab yeej |
Xaiv qhov chaw:
Qauv ua haujlwm:
3D CNC ntoo router tuaj yeem siv los ua cov ntoo ntoo carved, khoom siv tes ua ntoo qhov rooj thiab txee qhov rooj. Cov khoom ntoo zoo li no tsis tuaj yeem ua manually.
Technical Parameters:
Kev piav qhia | Parameter | ||
XYZ chaw ua haujlwm | 1300 * 2500 * 200 hli | 1500 * 3000 * 200mm | 2000 * 3000 * 200mm |
Rooj loj | 1310 * 3000 hli | 1510 * 3500 hli | 2010 * 3000 hli |
Rooj saum npoo | Aluminium T qhov ntxiv rau PVC | ||
Grantry | hlau | ||
Tsav system XY axis | khib | ||
Tsav system Z axis | Pob ntsia hlau | ||
Spindle zog | 3.2 / 5.5 KW | ||
Kev khiav haujlwm | DSP/Mach3/Ncstudio | ||
XY daws teeb meem | 0.025 hli | ||
Software ib puag ncig | Wentai type3 artcam | ||
Kev khiav ib puag ncig | Kub: 0-45 degree | ||
Qhov loj me | 3300 * 1900 * 1900 hli | ||
Net nyhav | 1000 kg | ||
Qhov hnyav tag nrho | 1200 kg | ||
Cim npe nrov: Tuam Tshoj 3d cnc ntoo router lwm tus neeg
