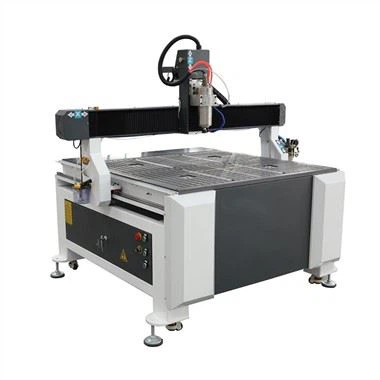

Deskop Hom CNC Router HT-6012
Yam ntxwv
Ib qho ntawm cov yam ntxwv tseem ceeb tshaj plaws ntawm CNC router no yog nws qhov kev ua haujlwm siab ntxaiv lub cev muaj zog, uas tuaj yeem ua tiav qhov nrawm txog li 24, 000 RPM. Qhov no ua kom lub tshuab tuaj yeem ua haujlwm txawm tias cov ntaub ntawv nyuaj tshaj plaws nrog kev yooj yim thiab raug.
Lub Deskop Hom CNC Router HT-6012 kuj tseem muaj lub siab-precision pob ntsia hlau kis tau tus mob, uas lav kev ua haujlwm zoo thiab raug thaum lub sijhawm txiav. Tsis tas li ntawd, lub tshuab kev tswj hwm qib siab ua rau nws yooj yim rau kev khiav lag luam thiab tswj, txawm tias cov neeg siv tshiab tshiab.
Lwm qhov zoo dua ntawm Deskop Type CNC Router HT-6012 yog nws cov khoom siv ntau yam. Nws tuaj yeem siv los txiav cov ntaub ntawv ntau yam, suav nrog ntoo, yas, acrylic, txhuas, thiab lwm yam. Qhov no ua rau nws yog ib qho cuab yeej zoo tshaj plaws rau ntau yam kev siv, los ntawm kev tsim cov qauv intricate mus rau kev tsim cov khoom zoo.
Zuag qhia tag nrho, Deskop Hom CNC Router HT-6012 yog lub tshuab muaj zog thiab txhim khu kev qha uas muaj txiaj ntsig tshwj xeeb rau cov nyiaj. Nws compact loj, precision txiav peev xwm, thiab yooj yim ntawm kev siv ua rau nws yog ib qho kev xaiv zoo heev rau kev cob qhia los yog ntau lawm kab.
Cov Qauv Ua Haujlwm:
Kev ua haujlwm parameter
| Tus lej | Kev piav qhia | Parameter |
| 1 | XYZ chaw ua haujlwm | 600 * 1200 * 100 hli |
| 2 | Rooj loj | 740 * 1420 hli |
| 3 | XYZ ncig xyuas qhov tseeb | ± 0.01 hli |
| 4 | XYZ repositioning positioning raug | ± 0.01 hli |
| 5 | Gantry | Aluminium plus PVC |
| 6 | tshuab dhos qauv | casting aluminium |
| 7 | tsav system XY axis | Pob ntsia hlau |
| 8 | tsav system Z axis | Pob ntsia hlau |
| 9 | Spindle zog | 1.5 KW TSI |
| 10 | Max ceev | 8m / min |
| 11 | Max ua hauj lwm ceev | 6m / min |
| 12 | Spindle ceev | 0-24000rmp |
| 13 | hom haujlwm | Stepper |
| 14 | Ua haujlwm voltage | AC 220 V |
| 15 | Lus txib | G kod |
| 16 | Interface | USB los yog parallel chaw nres nkoj |
| 17 | Kev khiav haujlwm | Ncstudio/Mach3/DSP |
| 18 | Flash nco | 128 |
| 19 | XY daws teeb meem | <0.025mm |
| 20 | Software ib puag ncig | Wentai type3 artcam |
| 21 | Kev khiav ib puag ncig | Kub: 0-45 degree |
| 22 | Ntim qhov loj | 1850 * 1140 * 900 hli |
| 23 | Net nyhav | 185kg ua |
| 24 | Qhov hnyav tag nrho | 220kg ib |
