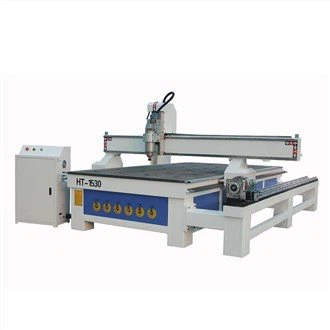

3D Wood Router
Nqe lus piav qhia:
Peb 3D Wood Router yog ib qho khoom siv hluav taws xob siv los txiav ncaj los yog dai kom zoo nkauj profile grooves thiab kab ntawm ntug lossis saum npoo ntawm ntoo. Nws muaj ntau yam kev siv, siv rau carving rooj tog, staircases, Buddhas, handicrafts thiab lwm yam peb-dimensional workpieces, thiab yuav siv tau rau carving complex dav hlau nyem. Nyob rau tib lub sijhawm, nws tuaj yeem siv ua ke nrog cov kws tshaj lij cov kws tshaj lij los ua cov qauv tsim thiab kev ua haujlwm, suav nrog kev ua haujlwm ntxhib thiab ua tiav, uas yuav ua rau koj zoo nkauj carving nyhuv.
Yam ntxwv:
Qhov 3D Wood Router no tau txais cov qauv tsim qauv, uas nws lub ntsej muag sib xyaw ua ke sib txuas cov kab ke, txiv ntseej, iav, spindle, tshuab cuab yeej tswj qhov system, tsav tsheb thiab lwm yam khoom, uas yooj yim heev rau qhov loj thiab kev thauj mus los. Nyob rau tib lub sijhawm, nws txais kev tsim ntawm plaub lub ntsiab shafts thiab plaub rotating shafts, txoj kab uas hla ntawm lub tog raj kheej ua tiav tuaj yeem nce mus txog 500 hli, thiab qhov ntev tuaj yeem ncav cuag 2400 hli. 3D Wood Router tuaj yeem ua haujlwm zoo carving, txiav thiab milling. Tsis tas li ntawd, nws muaj cov cuab yeej tig rau carving lub tog raj kheej workpiece, uas tuaj yeem txhim kho cov khoom ua haujlwm zoo thaum ua haujlwm los tiv thaiv kev txav los yog plam, txhawm rau txhim kho kev ua haujlwm zoo.
Performance Parameter:
Kev piav qhia | Parameter |
XYZ chaw ua haujlwm | 1200 * 1800 * 300mm lossis 1300 * 2500 * 200mm |
Rotary Max. Diameer | 300 hli |
Rotary Max.Length | 1800 hli |
Kev daws teeb meem | 0.03 hli |
Rooj loj | 1450 * 2000 hli |
Tshuab dhos qauv | Seamless welded steel qauv |
X, Y Structure | Khib thiab pinion kis tau tus mob, Hiwin square qhia rail |
Z Qauv | Lub teb chaws Yelemees dov pob ntsia hlau, Hiwin square qhia rail |
Max. Idling Ceev | 35m / min |
Tib Spindle Power | 2.2 KW dej txias ntxaiv |
Spindle Rotate Ceev | 0-24000r/min, hloov pauv ceev |
Ua haujlwm Voltage | AC380V / 50Hz |
Ua hauj lwm hom | stepper (servo) |
txib | G code (HPGL, U00, mmg, plt) |
Kev Ua Haujlwm | NC Studio tswj |
Txoj kab uas hla ntawm cutter | φ3 175-φ12.7 hli |
Dust-collect Function | Yog lawm |
Kev tuav haujlwm | Los ntawm clamp |
Software | Hom 3, ArtCam |
Packing loj | 3900mm * 2280mm * 2260mm |
Net nyhav | 1800 KG |
Machine Parts:
Cov Qauv Ua Haujlwm:
FAQ:
Q1. Lub sijhawm tsim khoom tom qab kev txiav txim yog dab tsi?
Txog 10-20 hnub nyob ntawm cov tshuab sib txawv.
Q2. Yuav ua li cas txog koj qhov kev pab cuam tom qab muag?
Peb muab 24-teev kev pabcuam online. Koj tuaj yeem tiv tauj peb hauv xov tooj, email, WhatsApp, thiab lwm yam.
Q3. Kev Tswj Xyuas Zoo:
Tag nrho cov txheej txheem tsim khoom yuav nyob rau hauv kev tshuaj xyuas tsis tu ncua thiab kev tswj xyuas nruj. Lub tshuab ua tiav yuav raug kuaj kom paub tseeb tias lawv tuaj yeem ua haujlwm tau zoo ua ntej tawm ntawm lub hoobkas.
Kev sim video thiab cov duab yuav muaj ua ntej xa khoom
