4 X 8 Cnc Router
* Stepper tsav tsheb, lossis servo tsav tsheb yeem
* TBI Square tsheb ciav hlau
* Lub rooj nqus tsev vacuum, kho cov ntaub ntawv yooj yim
* Square raj weld lub cev thiab ncej
|
|

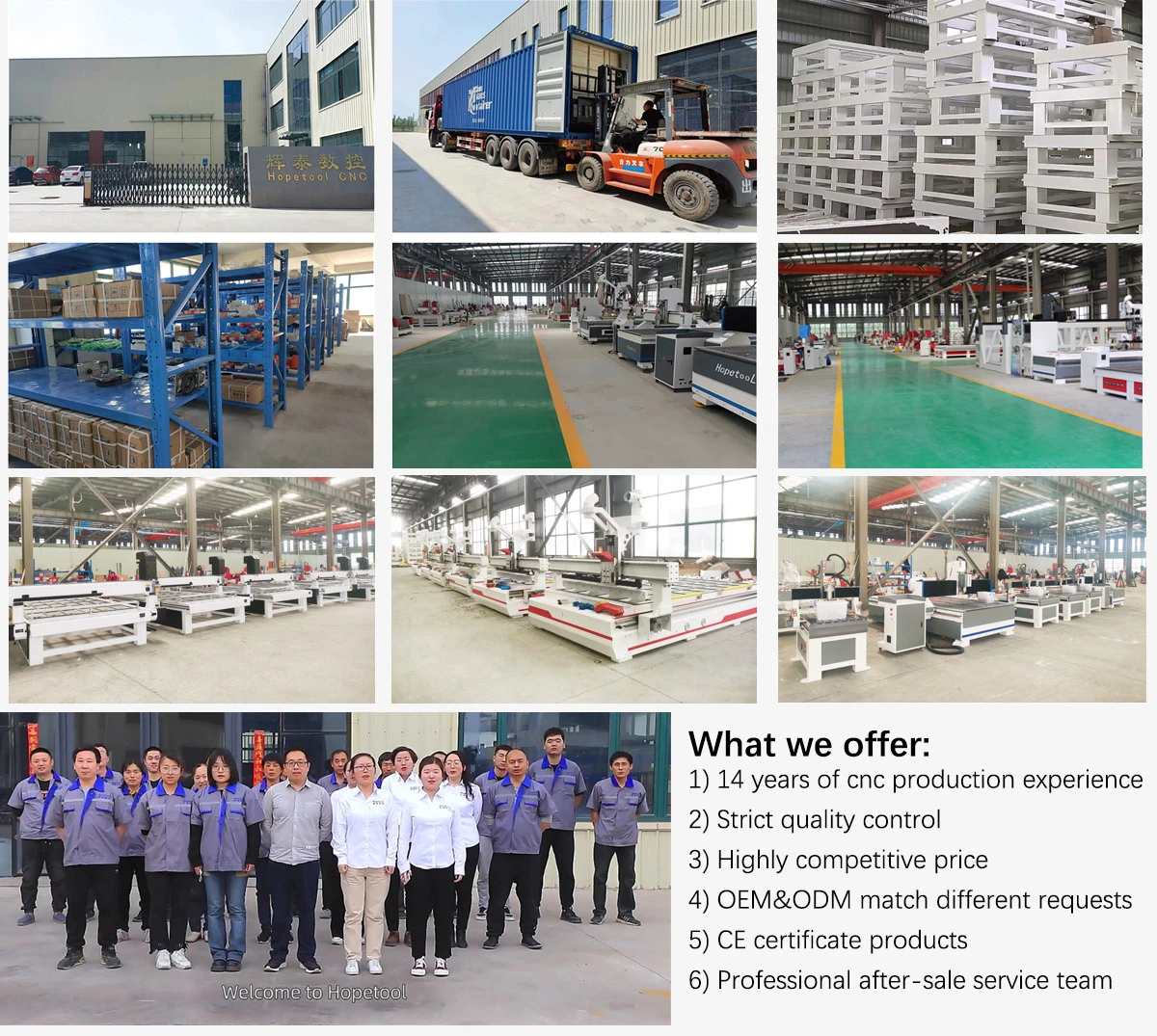

15 xyoo Hoobkas Kev tshawb fawb ywj pheej thiab kev tsim khoom tsim khoom - tus nqi ruaj khov Xaiv cov khoom zoo logistics - xa khoom raws sijhawm Muaj peev xwm ntau lawm - lub sijhawm luv luv |
|
Gold Medal Supplier rau14 Xyoo Alibaba kev ntsuam xyuas ntawm qhov chaw - Lub Hoobkas muaj peev xwm thiab muaj zog muaj zog |
|
|
40000 square meter Hoobkas,15 xyooqub chaw tsim khoom, nrog ntau tshaj 5 tus neeg ua haujlwm muag khoom, muag200+cov khoom siv ib hlis |
|
Lub Hoobkas tsim CNC woodworking series khoom, txhawb customization, muaj ntau xyooOEM kev paub, thiab15 xyoontawm kev ua lag luam txawv teb chaws, |

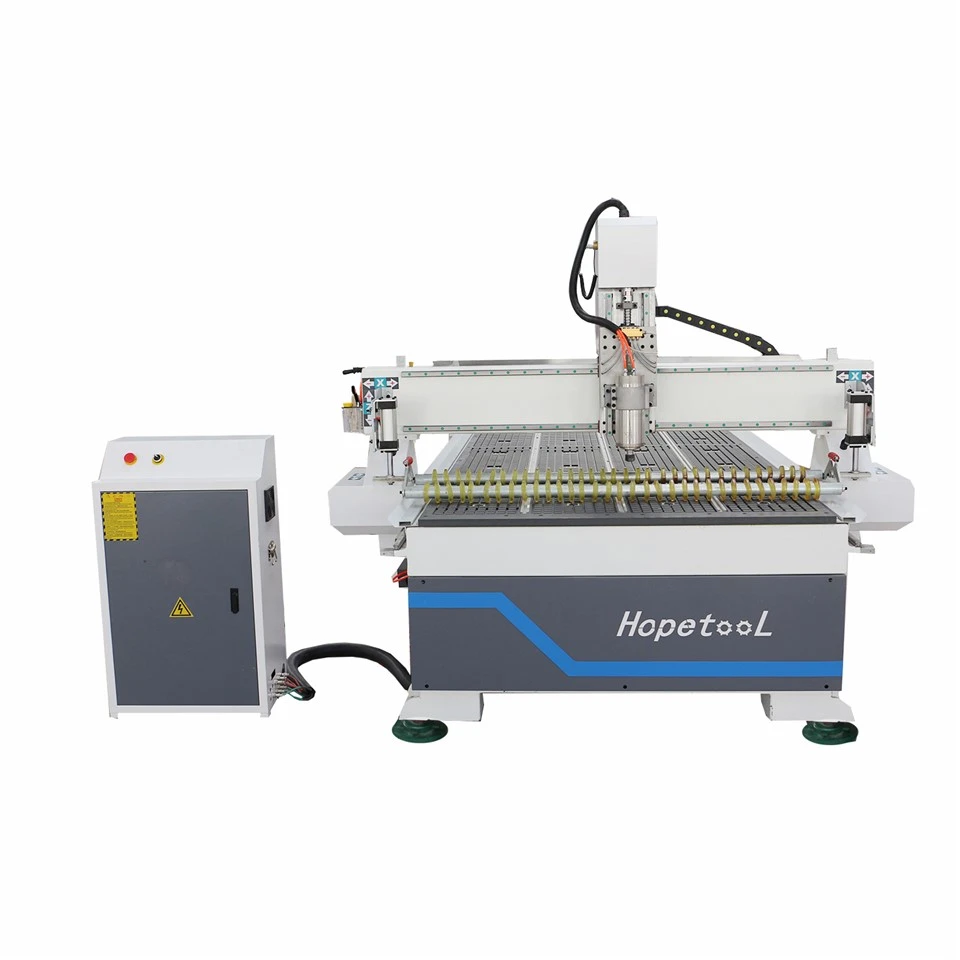

4 x 8 cnc router tshuab
◆ Lub Hoobkas tus kheej tsim tshiab yog ruaj thiab zoo nkauj dua
◆ DSP tswj qhov system, yooj yim rau kev khiav lag luam.
◆Stepper tsav lossis servo tsav (yeem)
◆ TBI Square Track

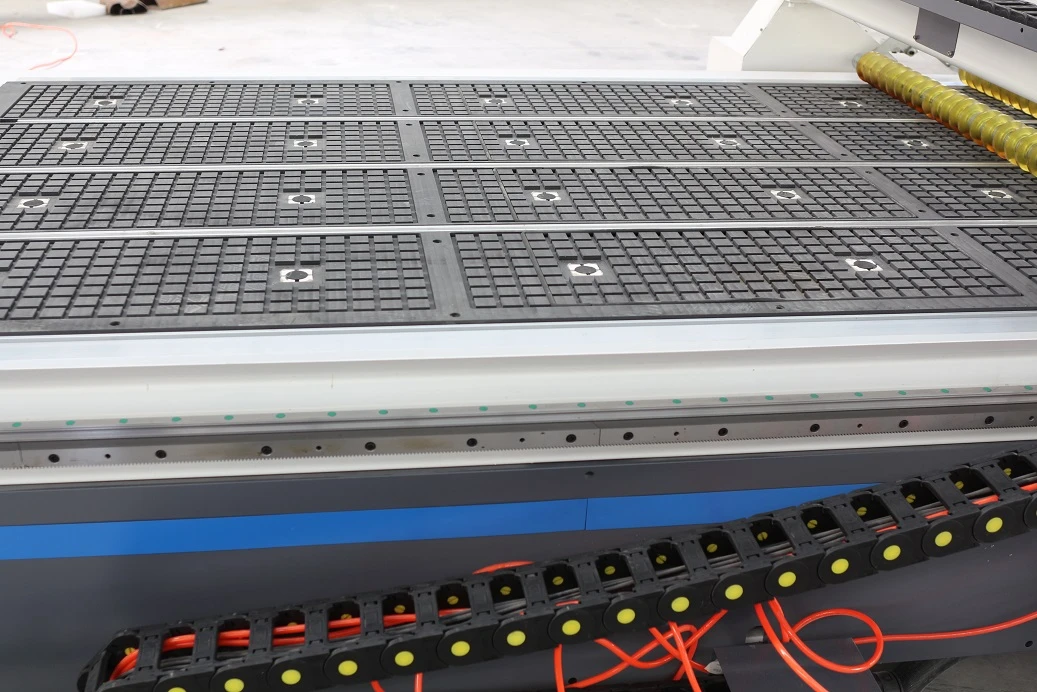

◆Lub rooj nqus tsev vacuum, muaj peev xwm kho cov khoom ntawm ntau qhov ntau thiab tsawg
◆Square raj welded integrated ncej
|
Kev piav qhia
|
Parameter
|
||
|
XYZ chaw ua haujlwm
|
1300 * 2500 * 200 hli
|
1500 * 3000 * 200mm
|
2000 * 3000 * 200mm
|
|
Rooj loj
|
1310 * 3000 hli
|
1510 * 3500 hli
|
2010 * 3000 hli
|
|
XYZ ncig xyuas qhov tseeb
|
± 0.01 hli
|
||
|
XYZ repositioning positioning raug
|
± 0.02mm
|
||
|
Rooj saum npoo
|
Lub tshuab nqus tsev (5.5KW cua twj tso kua mis) |
||
|
Grantry
|
hlau
|
||
|
Tsav system XY axis
|
khib
|
||
|
Tsav system Z axis
|
Pob ntsia hlau
|
||
|
Spindle zog
|
3.2 / 5.5 KW
|
||
|
Max ceev
|
50m / min
|
||
|
Max ua hauj lwm ceev
|
25m / min
|
||
|
Spindle ceev
|
0-24000rmp
|
||
|
Hom haujlwm
|
kauj ruam (optional servo)
|
||
|
Ua haujlwm voltage
|
AC220V / 380V
|
||
|
Lus txib
|
G kod
|
||
|
Interface
|
USB
|
||
|
Kev khiav haujlwm
|
DSP/Mach3/Ncstudio
|
||
|
Flash nco
|
128
|
||
|
XY daws teeb meem
|
0.025 hli
|
||
|
Software ib puag ncig
|
Wentai type3 artcam
|
||
|
Kev khiav ib puag ncig
|
Kub: 0-45 degree
|
||
|
Qhov loj me
|
3300 * 1900 * 1900 hli
|
||
|
Net nyhav
|
1200 kg
|
||
PS: Txhua qhov chaw ua haujlwm thiab cov lus qhia tshwj xeeb tuaj yeem kho raws li koj qhov kev thov
Daim duab nthuav dav
|
|
|
|
| 3.2kw dej txias ntxaiv | Lub tshuab nqus tsev | DSP maub los |
|
|
|
|
| Lub zog inverter | Tsis siv neeg oiler | Cov cab kuj |
4 X 8 Cnc Router Machinery Daim Ntawv Thov:
Kev lag luam tshaj tawm:acrylic txiav, MDF engraving txiav thiab engraving, ntoo kho kom zoo nkauj khoom ua. Pom zoo qauv CX1325 cnc ntoo router.
Ntoo qhov rooj:MDF thiab ntoo qhov rooj engraving, pom zoo qauv: CXM25 cnc router 1325.
Ntoo rooj tog:txee qhov rooj ua nrog nyuaj tsim, pom zoo qauv:
Multi-heads pneumatic ATC router cnc, Linear pib cuab tam hloov cnc router, Carousel ntoo cnc router nrog 12 disc cuab yeej.
Vaj huam sib luag rooj tog:ntoo vaj huam sib luag txee ua, pom zoo qauv: tsis siv neeg thauj khoom unloading raug nplua ua cnc router nrog drilling / tho khoom.
